T Cell Receptor: Structure, Function, Signaling Pathways, and Testing

Introduction

T cell receptors (TCRs) are crucial components of the adaptive immune system, enabling T cells to recognize and respond to specific antigens. The TCR’s role is pivotal in immune surveillance and defense against pathogens. This article delves into the intricacies of TCR structure, function, signaling pathways, and testing methodologies, providing a comprehensive overview supported by the latest scientific evidence.

Structure of The T Cell Receptor

Fig. 1: (A) The schematic structure of T-cell receptor (TCR) complex. (B) Space filling model of the TCR-αβ heterodimer ectodomain. (Nicholas Manolios et al,. 2023)

Overview of TCR Architecture

TCR is a membrane-bound protein complex critical for the adaptive immune response. Predominantly, TCRs consist of two main polypeptide chains, alpha (α) and beta (β), although they can also be made up of gamma (γ) and delta (δ) chains less frequently. Each chain comprises a variable (V) and a constant (C) region. The variable regions of the α and β chains form the antigen-binding site, which is extremely diverse due to V(D)J recombination—a genetic recombination process that creates a vast array of TCRs, each with a unique specificity for different antigens. This diversity is fundamental for the immune system’s ability to recognize a wide variety of pathogens. According to a study by Davis and Bjorkman (1988) published in "Nature", this diversity allows T cells to recognize nearly any peptide-MHC complex.

ITAMs and Membrane Association

The intracellular portion of the TCR complex is associated with the CD3 complex, consisting of CD3γ, CD3δ, CD3ε, and CD3ζ chains. These CD3 chains each contain Immunoreceptor Tyrosine-based Activation Motifs (ITAMs), which are crucial for TCR signaling. The cytoplasmic domains of CD3ε and CD3ζ chains are positively charged and interact with the negatively charged inner leaflet of the plasma membrane, which is primarily composed of phosphatidylserine (PS). This interaction is essential for maintaining the structural integrity of ITAMs. Research by Xu et al. (2008) in "Nature" demonstrated using synthetic lipid vesicles and fluorescence resonance energy transfer (FRET) assays that ITAMs adopt an α-helical structure upon lipid binding.

Structural Implications for TCR Function

Recent studies focusing on the lipid environment of TCR complexes have shown that ITAMs insert into the lipid bilayer, thus stabilizing the TCR complex. For example, a study by Smith-Garvin et al. (2009) in "Annual Review of Immunology" used bicelles to mimic the natural lipid environment and revealed that ITAMs are inserted into the lipid bilayer. This insertion positions key residues, such as tyrosines and aliphatic residues, into the hydrophobic core of the bilayer, thereby maintaining the receptors’ stability and function. This lipid-bound state prevents premature phosphorylation of ITAMs by kinases such as Lck, thus regulating the initiation of TCR signaling. These insights into the structural dynamics of TCR signaling components underscore the intricate regulatory mechanisms ensuring that T cells are activated only in response to genuine antigens.

Function of the T Cell Receptor

Antigen Recognition and Specificity

The TCR plays a pivotal role in the adaptive immune system by recognizing peptide antigens presented by Major Histocompatibility Complex (MHC) molecules on the surface of antigen-presenting cells (APCs). This antigen recognition is primarily mediated by the variable regions of the TCR α and β chains, which are generated through a process known as somatic recombination. This recombination process involves the rearrangement of gene segments that encode the TCR, allowing for the creation of a highly diverse TCR repertoire. This diversity is essential for the immune system’s ability to identify and respond to a broad spectrum of pathogens.

One landmark study by Davis and Bjorkman (1988) demonstrated the critical role of TCR and MHC interactions in antigen recognition. They showed that the TCR binds specifically to peptide-MHC complexes, which is crucial for the specificity of the immune response. Their work provided foundational insights into the structure of the TCR and its interactions with MHC molecules, highlighting how the specificity of TCR recognition is achieved through the unique variable regions of the TCR chains (Davis, M. M., & Bjorkman, P. J., 1988).

Role in Immune Response

Once a TCR recognizes its specific antigen-MHC complex, it initiates a series of intracellular signaling events that lead to T cell activation. This activation process involves the phosphorylation of tyrosine residues in the TCR signaling complex, which subsequently triggers a cascade of signaling pathways, including the activation of transcription factors such as NF-κB and AP-1. These signaling events result in T cell proliferation and differentiation into various effector subsets.

Activated T cells can differentiate into several types of effector cells, each with a distinct role in the immune response. Cytotoxic T cells (CD8+ T cells) are specialized in killing infected or cancerous cells, while helper T cells (CD4+ T cells) assist in the activation of other immune cells, such as B cells and macrophages. Regulatory T cells (Tregs) play a crucial role in maintaining immune tolerance and preventing autoimmune responses (Janeway et al., 2001).

A comprehensive review by Janeway et al. (2001) detailed the mechanisms by which TCR signaling leads to the activation and differentiation of T cells. Their review emphasized the importance of TCR-mediated signaling in orchestrating the adaptive immune response and maintaining immune homeostasis (Janeway, C. A., et al., 2001).

T Cell Receptor Signaling Pathways

Initiation of TCR Signaling

TCR signaling is initiated by the engagement of the TCR with the antigen-MHC complex, a crucial event in the adaptive immune response. Upon antigen recognition, conformational changes occur within the TCR-CD3 complex, leading to the activation of Src family kinases, primarily Lck. The active Lck kinase phosphorylates tyrosine residues within the Immunoreceptor Tyrosine-based Activation Motifs (ITAMs) of the CD3ζ and CD3ε chains. These phosphorylated ITAMs serve as docking sites for the Syk family kinase, ZAP-70, allowing it to bind and become activated (Smith-Garvin et al., 2009).

Signal Propagation

Once activated, ZAP-70 plays a pivotal role in propagating the TCR signal. It phosphorylates several adaptor proteins, including LAT (Linker for the Activation of T cells) and SLP-76 (SH2 domain-containing Leukocyte Protein of 76 kDa). These phosphorylated adaptors subsequently recruit and activate various downstream signaling molecules, such as PLC-γ1 (Phospholipase C gamma 1). Activated PLC-γ1 catalyzes the hydrolysis of PIP2 (Phosphatidylinositol 4,5-bisphosphate) into the second messengers IP3 (Inositol triphosphate) and DAG (Diacylglycerol) (Balagopalan et al., 2015). IP3 mobilizes intracellular calcium stores, while DAG activates Protein Kinase C (PKC). These signaling events result in the activation of crucial transcription factors, including NF-κB, NFAT, and AP-1, which drive the transcription of genes essential for T cell activation and function (Paul & Schaefer, 2013).

Regulation and Feedback Mechanisms

The TCR signaling pathway is subject to stringent regulation by both positive and negative feedback mechanisms to ensure appropriate immune responses. Co-stimulatory signals, such as those provided by CD28, act as positive regulators, enhancing TCR signaling and facilitating full T cell activation. Conversely, inhibitory receptors, including CTLA-4 (Cytotoxic T-Lymphocyte-Associated Protein 4) and PD-1 (Programmed Cell Death Protein 1), serve as negative regulators that attenuate TCR signaling to prevent overactivation and potential autoimmunity (Chen & Flies, 2013). Dysregulation of these pathways can result in pathological conditions; hyperactivation can lead to autoimmune diseases, whereas insufficient signaling can cause immune deficiencies and impaired T cell responses (Sharpe & Pauken, 2018).

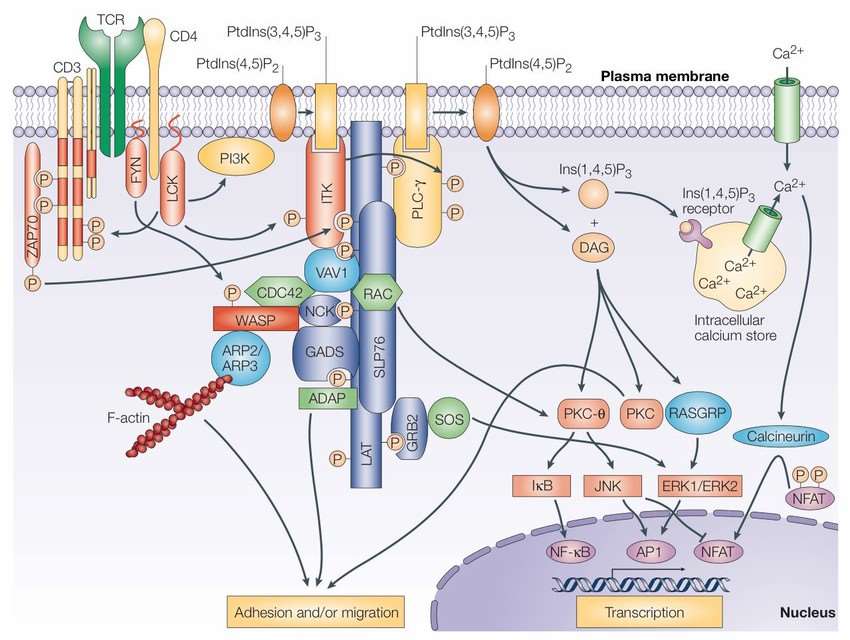

Fig. 2: TCR signaling pathways (Aleksey V. Belikov 2016)

For a more comprehensive understanding of TCR signaling pathways, please refer to "Overview of T Cell Receptor Signaling Pathways."

T Cell Receptor Testing

Diagnostic Applications

Testing for TCRs is vital in both clinical and research contexts as it provides critical insights into the diversity and clonality of T cells. These insights are indispensable for understanding immune responses in various conditions, including infections, autoimmune diseases, and cancers. TCR repertoire analysis helps reveal the immune status and potential therapeutic targets in these conditions. For example, a groundbreaking study by Robins et al. (2009) demonstrated robust methods for TCR sequencing that allow high-resolution analysis of TCR diversity, facilitating a better understanding of immune reactivity in cancer patients. Studies like these are instrumental in developing personalized immunotherapies.

Methods of TCR Testing

Several methods are used for TCR testing, each with its specific advantages. Flow cytometry is a widely used technique that allows for the detection and quantification of TCRs on the surface of T cells. This method is relatively straightforward and provides a comprehensive snapshot of T cell populations. Additionally, high-throughput sequencing methods, such as those described by Six et al. (2013), enable detailed analyses of TCR gene rearrangements. These high-throughput techniques are particularly useful for identifying clonally expanded T cells in conditions like cancer, where specific TCRs may be linked to tumor-specific antigens. These methods help identify potential biomarkers for disease and therapeutic targets.

Future Directions in TCR Testing

Advances in single-cell sequencing technologies are creating new opportunities for TCR testing. Single-cell sequencing allows for more comprehensive analyses of TCR repertoires at the single-cell level, providing valuable insights into the correlation of TCR specificity with the functional characteristics of individual T cells. Research led by Stubbington et al. (2016) illustrates how these technologies can elucidate the immune landscape in greater detail than previously possible. This approach enables researchers to link TCR diversity with functional phenotypes, paving the way for novel immunotherapies. Companies like CD Genomics are at the forefront of these advancements, offering state-of-the-art TCR testing solutions that provide deeper understanding of immune system dynamics, thus playing a pivotal role in both basic and translational research.

Conclusion

The T cell receptor is a cornerstone of the adaptive immune system, with its structure, function, and signaling pathways being critical for immune surveillance and response. Advances in TCR testing have significantly enhanced our understanding of immune responses in health and disease, with CD Genomics playing a pivotal role in providing advanced solutions for TCR analysis. As research progresses, the continued exploration of TCR biology will undoubtedly lead to new therapeutic strategies for a wide range of diseases.

References:

1. Balagopalan, L., Barr, V. A., & Samelson, L. E. (2015). Endocytic events in TCR signaling: Focus on adapters in microclusters. Immunological Reviews, 232(1), 178-189.
2. Chen, L., & Flies, D. B. (2013). Molecular mechanisms of T cell co-stimulation and co-inhibition. Nature Reviews Immunology, 13(4), 227-242.
3. Davis, M. M., & Bjorkman, P. J. (1988). T-cell antigen receptor genes and T-cell recognition. Nature, 334(6181), 395-402.
4. Janeway, C. A., Travers, P., Walport, M., & Shlomchik, M. J. (2001). Immunobiology: The Immune System in Health and Disease. Garland Science.
5. Mariuzza, R. A., Agnihotri, P., & Orban, J. (2020). The structural basis of T-cell receptor (TCR) activation: An enduring enigma. Journal of Biological Chemistry, 295(4), 914-925.
6. Paul, S., & Schaefer, B. C. (2013). A new look at T cell receptor signaling to nuclear factor-κB. Trends in Immunology, 34(6), 269-281.
7. Robins, H. S., Campregher, P. V., Srivastava, S. K., Wacher, A., Turtle, C. J., Kahsai, O., … & Carlson, C. S. (2009). Comprehensive assessment of T-cell receptor beta-chain diversity in alphabeta T cells. Blood, 114(19), 4099-4107.
8. Sharpe, A. H., & Pauken, K. E. (2018). The diverse functions of the PD1 inhibitory pathway. Nature Reviews Immunology, 18(8), 476-487.
9. Six, A., Mariotti-Ferrandiz, E., Chaara, W., Magadan, S., Pham, H. P., Lefranc, M. P., … & Jouvin-Marche, E. (2013). The past, present, and future of immune repertoire biology – the rise of next-generation repertoire analysis. Frontiers in Immunology, 4, 413.
10. Smith-Garvin, J. E., Koretzky, G. A., & Jordan, M. S. (2009). T cell activation. Annual Review of Immunology, 27, 591-619.
11. Stubbington, M. J., Rozenblatt-Rosen, O., Regev, A., & Teichmann, S. A. (2016). Single-cell transcriptomics to explore the immune system in health and disease. Science, 358(6359), 58-63.
12. Wucherpfennig, K. W., Gagnon, E., Call, M. J., Huseby, E. S., & Call, M. E. (2010). Structural biology of the T-cell receptor: Insights into receptor assembly, ligand recognition, and initiation of signaling. Cold Spring Harbor Perspectives in Biology, 2(2), a005140.
13. Xu, C., Gagnon, E., Call, M. E., Schnell, J. R., Schwieters, C. D., Carman, C. V., Chou, J. J., & Wucherpfennig, K. W. (2008). Regulation of T cell receptor activation by dynamic membrane binding of the CD3ε cytoplasmic tyrosine-based motif. Cell, 135(4), 702-713.
